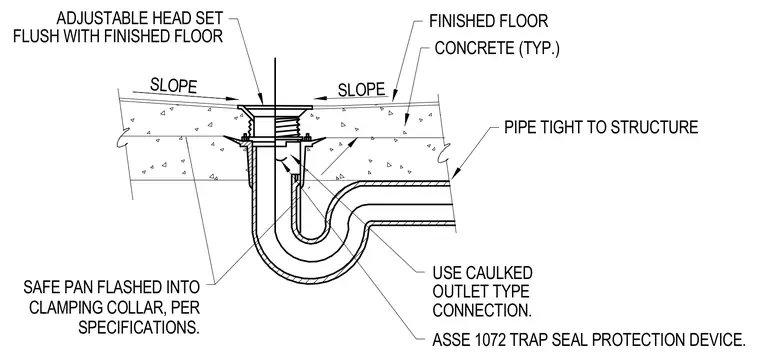

An adjustable floor drain head is set flush with the finished concrete floor, which slopes toward the drain. A safe pan is flashed into the clamping collar per specifications. A caulked connection secures the outlet type, and an ASSE 1072 trap seal protection device is installed within the trap. The drainage pipe runs tight to the concrete structure.
FINISHED FLOOR CONCRETE (TYP.) SLOPE USE CAULKED CONNECTION. OUTLET TYPE ADJUSTABLE HEAD SET FLUSH WITH FINISHED FLOOR SLOPE SAFE PAN FLASHED INTO CLAMPING COLLAR, PER SPECIFICATIONS. ASSE 1072 TRAP SEAL PROTECTION DEVICE. PIPE TIGHT TO STRUCTURE
