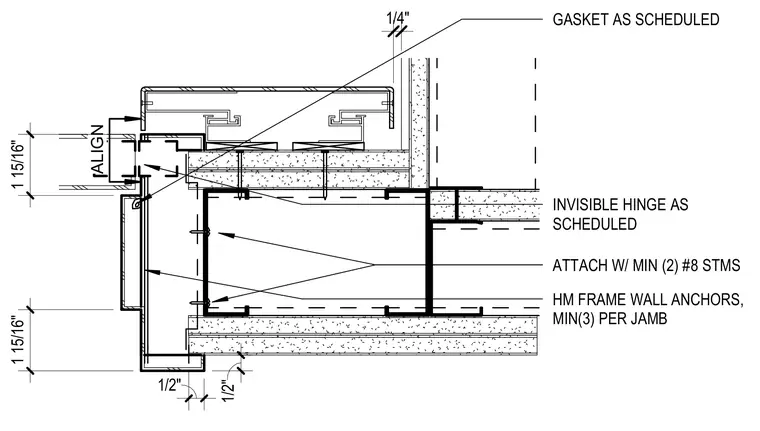

A hollow metal door frame jamb connection includes an invisible hinge and a gasket as scheduled. The metal frame is attached to the wall using a minimum of two number eight sheet metal screws and hollow metal frame wall anchors with a minimum of three per jamb. The assembly provides precise alignment tolerances including one and fifteen-sixteenths inch and one-half inch dimensions.
ATTACH W/ MIN (2) #8 STMS HM FRAME WALL ANCHORS, MIN(3) PER JAMB ALIGN GASKET AS SCHEDULED 1/2" 1/2" 1 15/16" 1 15/16" INVISIBLE HINGE AS SCHEDULED 1/4"
