Plumbing · P-CX8GV

Sanitary Lift Station

Materials

Elements

Doors Connections / Plates Roof / Floor Openings

About this detail

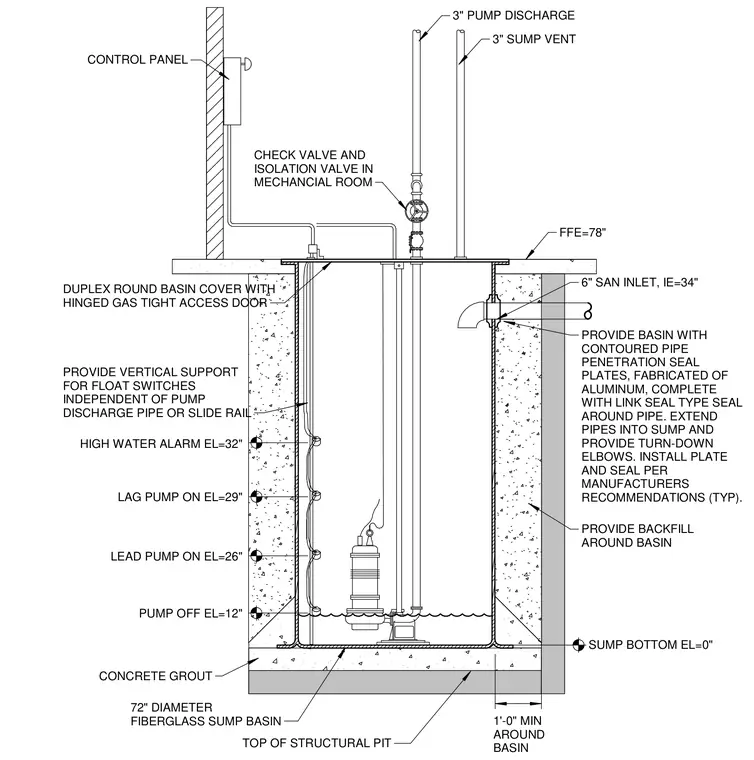

A seventy-two-inch diameter fiberglass sump basin is set within a concrete structural pit with one-inch minimum backfill and a concrete grout base at sump bottom elevation zero. A duplex round basin cover with a hinged gas-tight access door sits flush with a finished floor elevation of seventy-eight inches. The basin incorporates a six-inch sanitary inlet at elevation thirty-four inches with an aluminum contoured pipe penetration seal plate and link-seal type seal, complete with an internal turn-down elbow. A three-inch pump discharge pipe and a three-inch sump vent extend upward, with check and isolation valves located in the mechanical room. Float switches for lead pump on at elevation twenty-six inches, lag pump on at elevation twenty-nine inches, high water alarm at elevation thirty-two inches, and pump off at elevation twelve inches are provided with independent vertical supports. A control panel is mounted on the adjacent wall.
