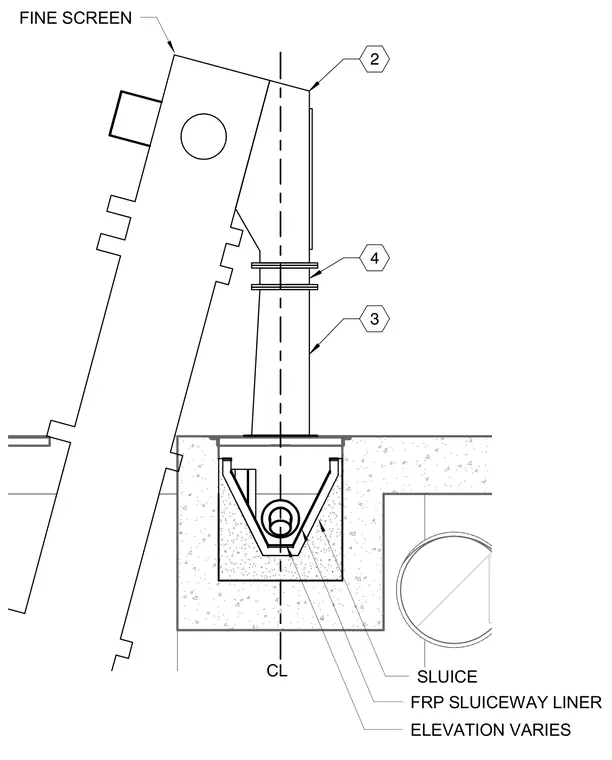

A fine screen unit connects to a vertical support mounted over a concrete sluice trench with a fiber-reinforced plastic sluiceway liner. The assembly incorporates a centerline alignment and variable elevations to accommodate site conditions. Connection components are welded to the stilling well according to project specifications.
