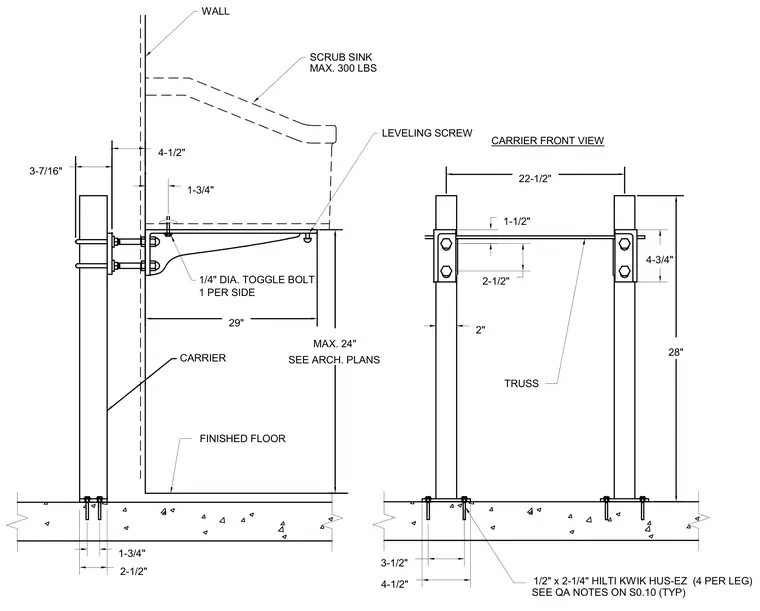

Wall-hung scrub sink installation and structural support assembly for a maximum weight capacity of 300 pounds. The sink carrier frame is anchored to the concrete floor slab using four 1/2-inch by 2-1/4-inch Hilti Kwik Hus-Ez concrete anchors per leg. The carrier assembly connects to the wall construction with 1/4-inch diameter toggle bolts, one per side, securing the support arms. Leveling screws are positioned beneath the sink basin to provide fine adjustment of the sink height, which is set to a maximum of 24 inches above the finished floor per architectural plans.
28" 22-1/2" 29" MAX. 24" SEE ARCH. PLANS FINISHED FLOOR TRUSS WALL LEVELING SCREW 1/4" DIA. TOGGLE BOLT 1 PER SIDE 1/2" x 2-1/4" HILTI KWIK HUS-EZ (4 PER LEG) SCRUB SINK MAX. 300 LBS CARRIER CARRIER FRONT VIEW SEE QA NOTES ON S0.10 (TYP) 3-7/16" 4-1/2" 1-3/4" 2-1/2" 4-3/4" 2" 3-1/2" 4-1/2" 2-1/2" 1-1/2" 1-3/4"
