Domestic water pipes are supported from the structure using threaded support rods fitted with top and bottom nuts and washers. Clevis type hangers and trapeze assemblies constructed from steel angles or Unistrut secure the piping. Vibration isolators are incorporated in mechanical rooms and as specified. Insulation shields formed from twenty-gauge galvanized steel at least twelve inches long protect insulated piping, featuring continuous vapor barriers and banded with stainless steel or plenum-rated nylon. Anchoring methods to the structure require submittal to the structural engineer for approval.

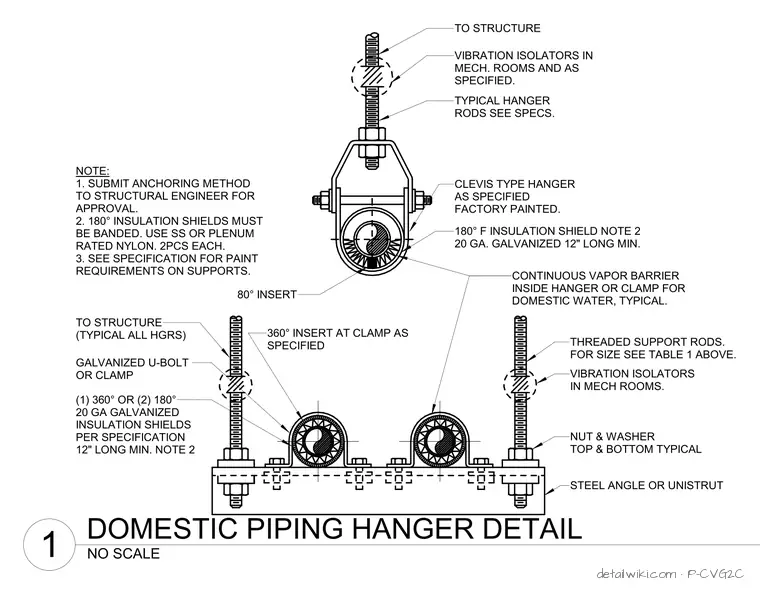

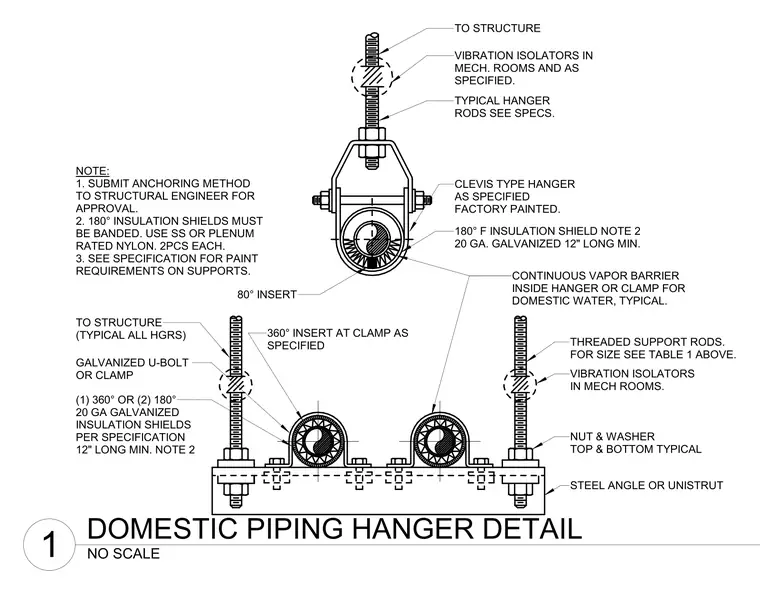

TO STRUCTURE VIBRATION ISOLATORS IN MECH. ROOMS AND AS SPECIFIED. TYPICAL HANGER RODS SEE SPECS. CLEVIS TYPE HANGER AS SPECIFIED FACTORY PAINTED. 180° F INSULATION SHIELD NOTE 2 20 GA. GALVANIZED 12" LONG MIN. CONTINUOUS VAPOR BARRIER INSIDE HANGER OR CLAMP FOR DOMESTIC WATER, TYPICAL. THREADED SUPPORT RODS. FOR SIZE SEE TABLE 1 ABOVE. VIBRATION ISOLATORS IN MECH ROOMS. NUT & WASHER TOP & BOTTOM TYPICAL STEEL ANGLE OR UNISTRUT NOTE: 1. SUBMIT ANCHORING METHOD TO STRUCTURAL ENGINEER FOR APPROVAL. 2. 180° INSULATION SHIELDS MUST BE BANDED. USE SS OR PLENUM RATED NYLON. 2PCS EACH. 3. SEE SPECIFICATION FOR PAINT REQUIREMENTS ON SUPPORTS. 80° INSERT TO STRUCTURE (TYPICAL ALL HGRS) GALVANIZED U-BOLT OR CLAMP (1) 360° OR (2) 180° 20 GA GALVANIZED INSULATION SHIELDS PER SPECIFICATION 12" LONG MIN. NOTE 2 360° INSERT AT CLAMP AS SPECIFIED NO SCALE 1 DOMESTIC PIPING HANGER DETAIL
