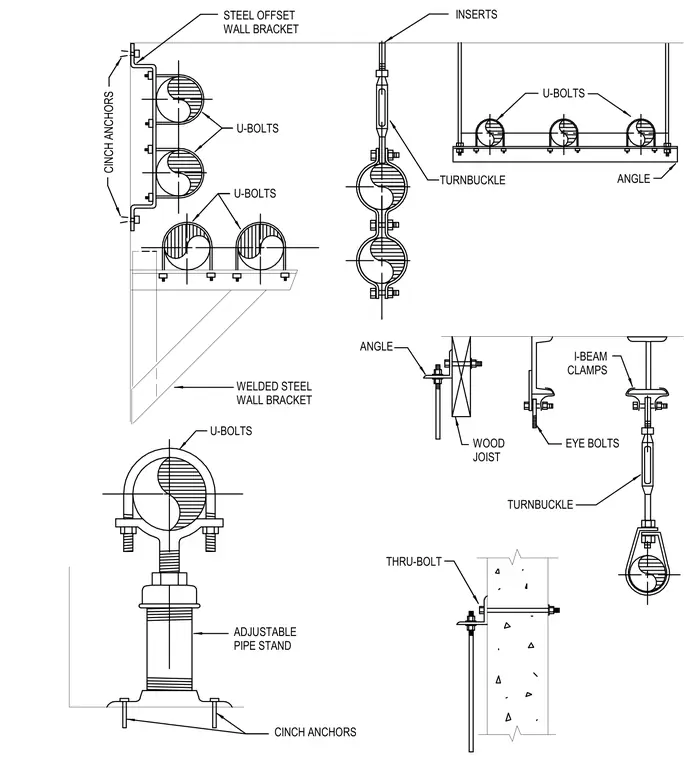

Various pipe supports and suspension assemblies anchor mechanical lines to structural framing and walls. Steel offset wall brackets and welded steel wall brackets secure pipes using U-bolts and cinch anchors. Overhead runs suspend from inserts, turnbuckles, and I-beam clamps attached to structural angles or wood joists. Floor-mounted configurations utilize adjustable pipe stands anchored with cinch anchors. Through-bolts secure brackets directly to concrete or masonry walls.
STEEL OFFSET WALL BRACKET CINCH ANCHORS CINCH ANCHORS INSERTS ANGLE ANGLE U-BOLTS U-BOLTS U-BOLTS U-BOLTS TURNBUCKLE TURNBUCKLE WELDED STEEL WALL BRACKET ADJUSTABLE PIPE STAND THRU-BOLT EYE BOLTS I-BEAM CLAMPS WOOD JOIST
