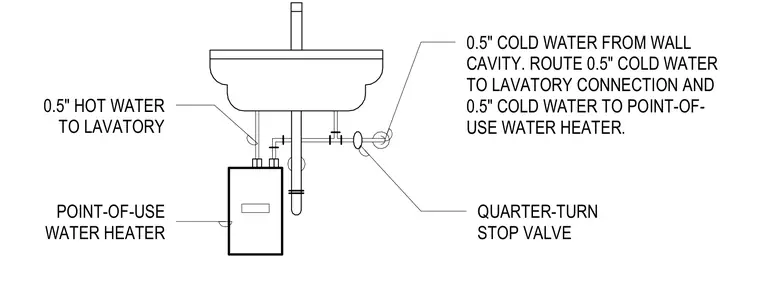

A half-inch cold water supply emerges from the wall cavity through a quarter-turn stop valve and branches to supply both the lavatory connection and a point-of-use water heater. The water heater then routes a half-inch hot water line directly to the lavatory fixture.
QUARTER-TURN STOP VALVE 0.5" COLD WATER FROM WALL CAVITY. ROUTE 0.5" COLD WATER TO LAVATORY CONNECTION AND 0.5" COLD WATER TO POINT-OF- USE WATER HEATER. POINT-OF-USE WATER HEATER 0.5" HOT WATER TO LAVATORY
