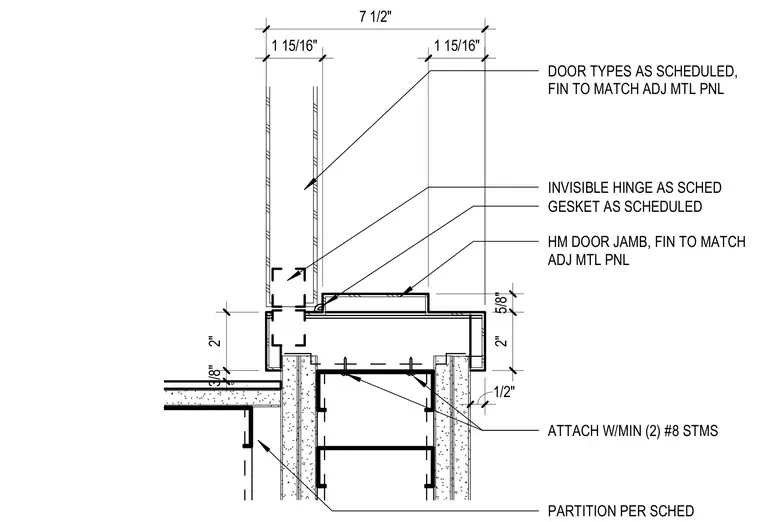

A hollow metal door jamb is installed within a partition framed per schedule, featuring a finish to match adjacent metal panels. An invisible hinge and gasket are incorporated as scheduled. The assembly is secured using a minimum of two number eight sheet metal screws.
1/2" 1 15/16" 1 15/16" 7 1/2" INVISIBLE HINGE AS SCHED PARTITION PER SCHED DOOR TYPES AS SCHEDULED, FIN TO MATCH ADJ MTL PNL HM DOOR JAMB, FIN TO MATCH ADJ MTL PNL GESKET AS SCHEDULED ATTACH W/MIN (2) #8 STMS 2" 3/8" 5/8" 2"
