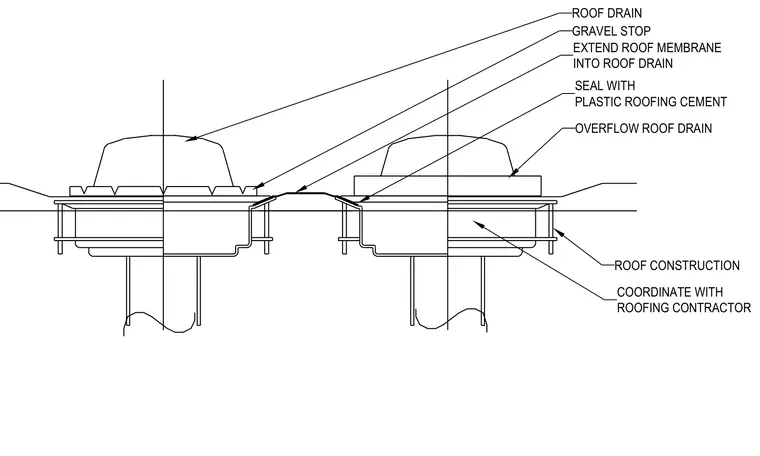

Roof drains and overflow roof drains integrate directly with the roof construction and require coordination with the roofing contractor. The roof membrane extends continuously into the roof drain and gets sealed with plastic roofing cement beneath the gravel stop. Standard roof construction supports the drain bodies.
ROOFING CONTRACTOR ROOF CONSTRUCTION COORDINATE WITH ROOF DRAIN GRAVEL STOP EXTEND ROOF MEMBRANE INTO ROOF DRAIN SEAL WITH PLASTIC ROOFING CEMENT OVERFLOW ROOF DRAIN
