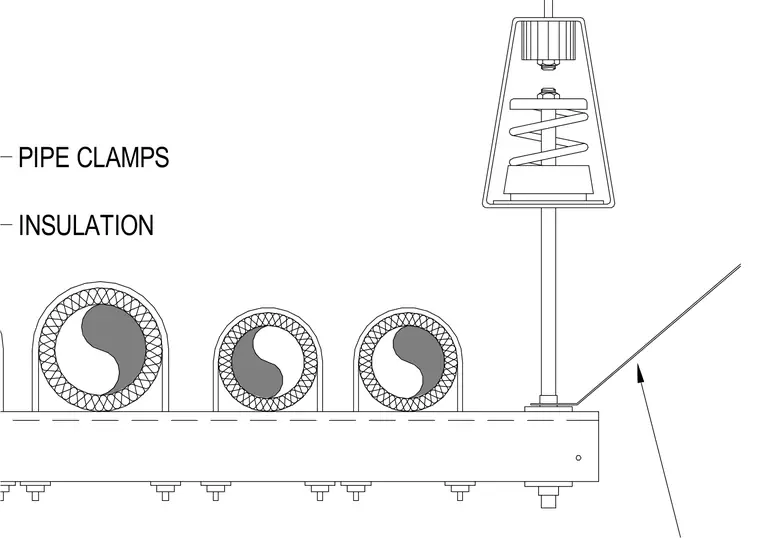

Suspended piping is supported on a trapeze member utilizing pipe clamps and insulation. The assembly incorporates a spring hanger connection for vibration isolation and vertical adjustment. Threaded rods and structural framing complete the hanging system.
