Two configurations for sanitary waste cleanouts comprise a standard floor cleanout and a cleanout to grade. The assembly features a cast iron waste line with a one-eighth bend connecting to a brass cleanout plug with a countersunk head. The top of the cleanout cover installs flush with the finished floor line. Exterior or grade installations include a sixteen-inch square concrete pad trowel-smooth with an edged finish around the cast iron bend. Cleanouts are restricted from being located in carpeted areas.

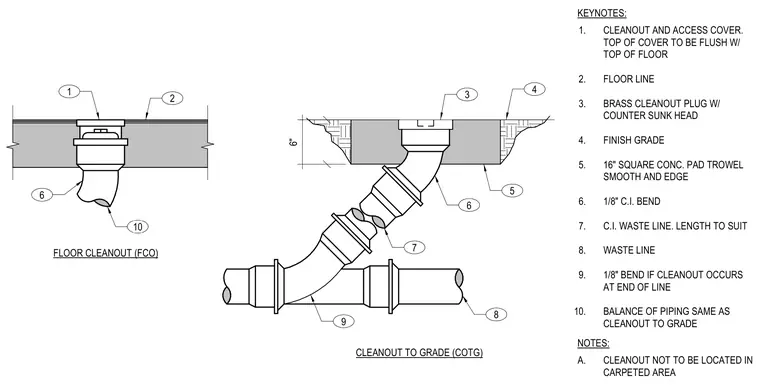

1 2 3 4 5 6 7 8 9 6" 10 6 FLOOR CLEANOUT (FCO) CLEANOUT TO GRADE (COTG) 1. KEYNOTES: CLEANOUT AND ACCESS COVER. TOP OF COVER TO BE FLUSH W/ TOP OF FLOOR 2. FLOOR LINE 3. BRASS CLEANOUT PLUG W/ COUNTER SUNK HEAD 4. FINISH GRADE 5. 16" SQUARE CONC. PAD TROWEL SMOOTH AND EDGE 6. 1/8" C.I. BEND 7. C.I. WASTE LINE. LENGTH TO SUIT 8. WASTE LINE 9. 1/8" BEND IF CLEANOUT OCCURS AT END OF LINE 10. BALANCE OF PIPING SAME AS CLEANOUT TO GRADE A. NOTES: CLEANOUT NOT TO BE LOCATED IN CARPETED AREA
