Plumbing · P-CJG3W

Floor Sink Detail (Upper Floors)

Materials

Elements

About this detail

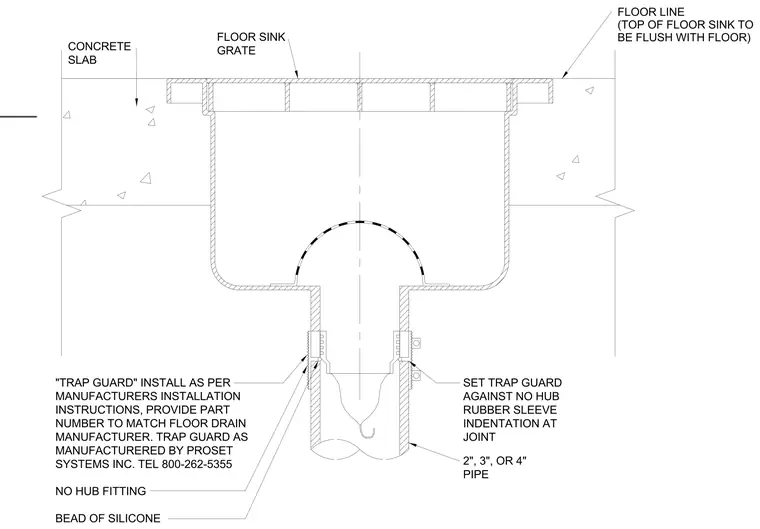

The floor sink body is set flush with the concrete floor line and fitted with a removable grate at the top surface. A two-, three-, or four-inch drain pipe connects to the bottom outlet via a no-hub fitting secured with a rubber sleeve and stainless steel band clamp. A proprietary trap guard is installed inside the connection according to the manufacturer's instructions, set against the no-hub rubber sleeve indentation at the joint. A continuous bead of silicone sealant is applied around the perimeter of the sink body at the floor line.
