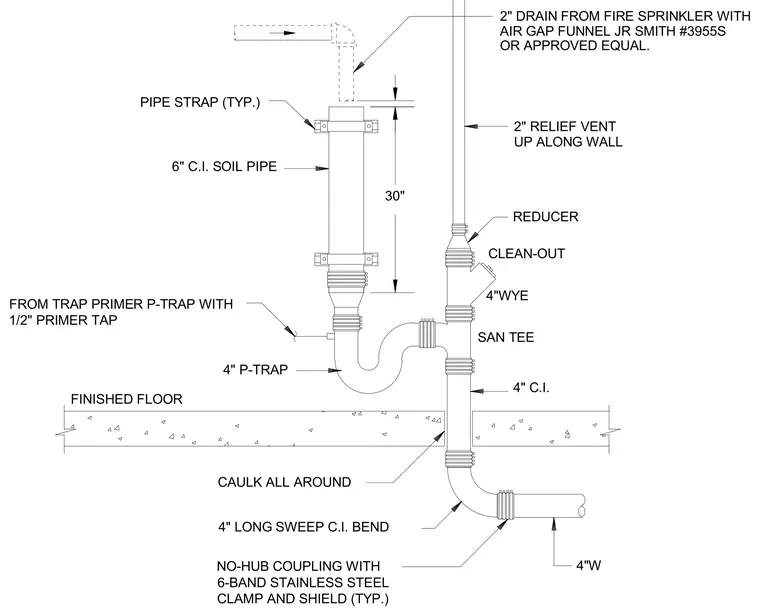

A two-inch drain line from the fire sprinkler system terminates at an air gap funnel positioned thirty inches above the finished floor, discharging into a six-inch cast iron soil pipe secured with typical pipe straps. The assembly incorporates a four-inch P-trap with a trap primer connection and a one-half-inch primer tap. A sanitary tee, four-inch wye, clean-out, and reducer connect the drainage to a four-inch cast iron vertical stack extending downward through the finished floor with caulking all around. Below the floor, a four-inch long sweep cast iron bend connects to the horizontal run using no-hub couplings with six-band stainless steel clamps and shields. A two-inch relief vent runs vertically up along the wall from the drainage stack.
FROM TRAP PRIMER P-TRAP WITH 1/2" PRIMER TAP 30" FINISHED FLOOR NO-HUB COUPLING WITH 6-BAND STAINLESS STEEL CLAMP AND SHIELD (TYP.) 4"WYE SAN TEE CAULK ALL AROUND CLEAN-OUT 4" P-TRAP 2" RELIEF VENT 4" LONG SWEEP C.I. BEND 6" C.I. SOIL PIPE AIR GAP FUNNEL JR SMITH #3955S 4" C.I. UP ALONG WALL 2" DRAIN FROM FIRE SPRINKLER WITH 4"W REDUCER PIPE STRAP (TYP.) OR APPROVED EQUAL.
