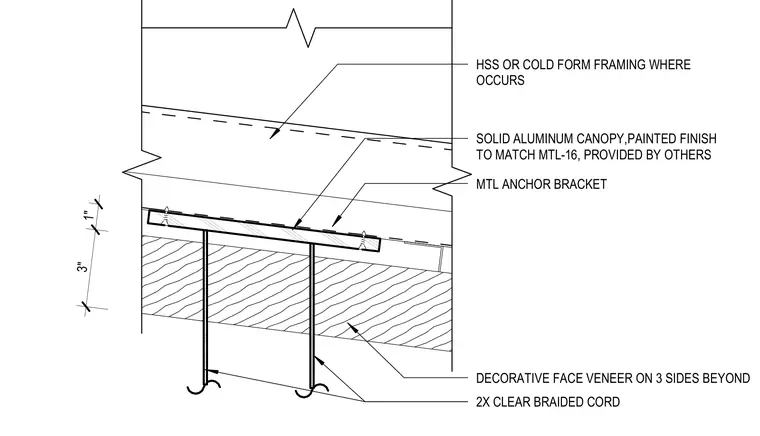

A solid aluminum canopy with a painted finish matching MTL-16 is secured via metal anchor brackets and fasteners to hollow structural section or cold-formed steel framing. Below the canopy, decorative face veneer extends on three sides beyond the backing structure. Two vertical clear braided cord elements are suspended below the canopy assembly.
DECORATIVE FACE VENEER ON 3 SIDES BEYOND HSS OR COLD FORM FRAMING WHERE OCCURS 2X CLEAR BRAIDED CORD SOLID ALUMINUM CANOPY,PAINTED FINISH TO MATCH MTL-16, PROVIDED BY OTHERS 3" 1" MTL ANCHOR BRACKET
