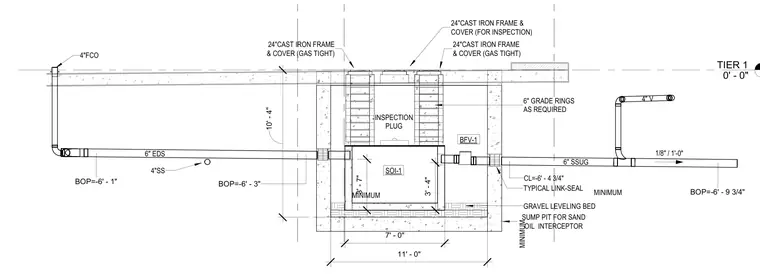

A sand oil interceptor vault is set on a gravel leveling bed within a concrete pit with dimensions of seven feet by eleven feet. The vault includes an inspection plug, an SOI-1 sand oil interceptor unit, and a butterfly valve designated as BFV-1. Access to the vault is provided through twenty-four-inch gas-tight cast iron frames and covers with adjustable six-inch grade rings as required. Piping connections feature typical Link-Seals at the vault wall penetrations, with a six-inch exterior drainage system pipe and four-inch sanitary sewer on the inlet side, and a six-inch sanitary sewer underground pipe with a four-inch vent on the outlet side at a slope of one-eighth inch per foot.
TIER 1 0' - 0" 6" EDS 4"FCO 4"SS CL=-6' - 4 3/4" 24"CAST IRON FRAME & COVER (GAS TIGHT) 6" GRADE RINGS AS REQUIRED TYPICAL LINK-SEAL SOI-1 INSPECTION PLUG 24"CAST IRON FRAME & COVER (GAS TIGHT) 24"CAST IRON FRAME & COVER (FOR INSPECTION) BFV-1 SUMP PIT FOR SAND OIL INTERCEPTOR GRAVEL LEVELING BED 10' - 4" 3' - 4" 3' - 7" 7' - 0" 11' - 0" 4" V 6" SSUG 1/8" / 1'-0" BOP=-6' - 9 3/4" BOP=-6' - 1" BOP=-6' - 3" MINIMUM MINIMUM MINIMUM
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
