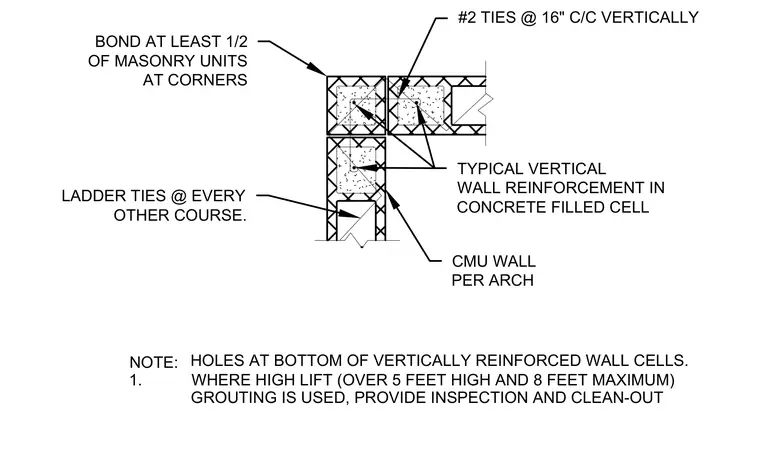

Concrete masonry unit walls feature typical vertical reinforcement placed within concrete-filled cells. Corners bond at least one-half of the masonry units together. Ladder ties occur at every other course, and number two ties are spaced at sixteen inches on center vertically. High-lift grouting between five and eight feet maximum requires inspection and clean-out holes at the bottom of the vertically reinforced wall cells.
NOTE: 1. WHERE HIGH LIFT (OVER 5 FEET HIGH AND 8 FEET MAXIMUM) GROUTING IS USED, PROVIDE INSPECTION AND CLEAN-OUT HOLES AT BOTTOM OF VERTICALLY REINFORCED WALL CELLS. CMU WALL PER ARCH LADDER TIES @ EVERY OTHER COURSE. TYPICAL VERTICAL WALL REINFORCEMENT IN CONCRETE FILLED CELL BOND AT LEAST 1/2 OF MASONRY UNITS AT CORNERS #2 TIES @ 16" C/C VERTICALLY
