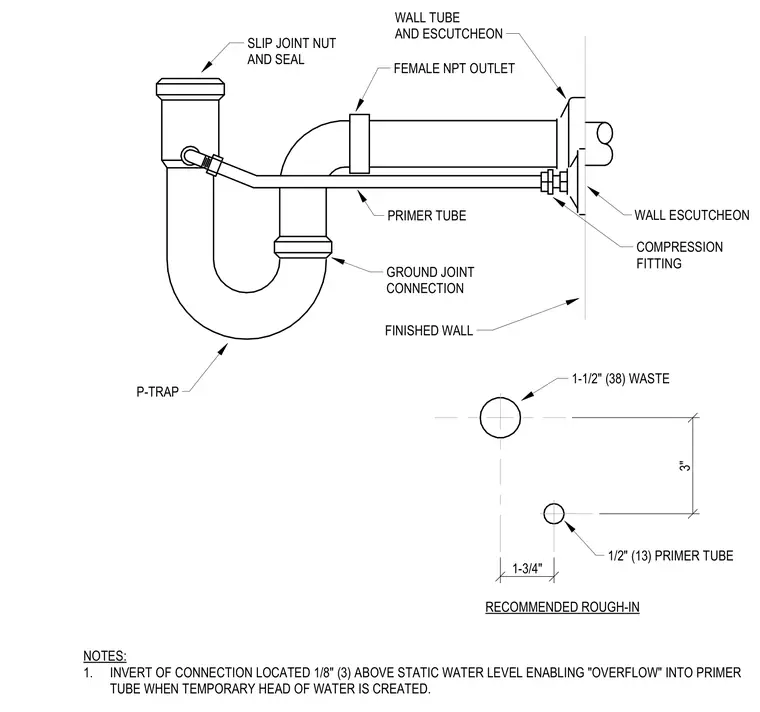

A 1-1/2 inch waste line feeds into a P-trap featuring a ground joint connection and a slip joint nut and seal. A 1/2 inch primer tube connects to the trap via a ground joint connection with its invert located 1/8 inch above the static water level, enabling overflow into the primer tube when a temporary head of water is created. The primer tube extends through a compression fitting and wall escutcheon at the finished wall, meeting a female National Pipe Thread outlet, wall tube, and escutcheon. Recommended rough-in dimensions place the primer tube 1-3/4 inches horizontally and 3 inches vertically from the main waste line.
RECOMMENDED ROUGH-IN NOTES: 1. INVERT OF CONNECTION LOCATED 1/8" (3) ABOVE STATIC WATER LEVEL ENABLING "OVERFLOW" INTO PRIMER TUBE WHEN TEMPORARY HEAD OF WATER IS CREATED. SLIP JOINT NUT AND SEAL WALL TUBE AND ESCUTCHEON FEMALE NPT OUTLET WALL ESCUTCHEON COMPRESSION FITTING PRIMER TUBE GROUND JOINT CONNECTION FINISHED WALL P-TRAP 1-1/2" (38) WASTE 1/2" (13) PRIMER TUBE 3" 1-3/4"
