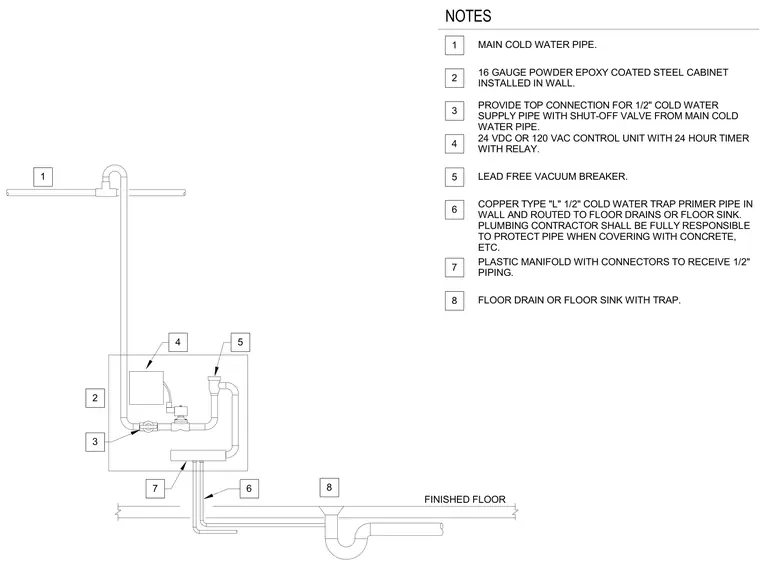

An electronic trap primer assembly is housed within a 16-gauge powder epoxy-coated steel cabinet installed in the wall, supplied by a main cold water pipe. A top connection provides a 1/2-inch cold water supply pipe with a shut-off valve, feeding a 24 VDC or 120 VAC control unit with a 24-hour timer and relay, followed by a lead-free vacuum breaker. Copper Type L 1/2-inch cold water trap primer piping runs from the assembly through the wall and routes down to a plastic manifold with connectors, extending to floor drains or floor sinks. The plumbing contractor is responsible for protecting the pipe when covering with concrete.
FINISHED FLOOR 1 2 7 3 6 4 5 8 NOTES MAIN COLD WATER PIPE. 16 GAUGE POWDER EPOXY COATED STEEL CABINET INSTALLED IN WALL. PROVIDE TOP CONNECTION FOR 1/2" COLD WATER SUPPLY PIPE WITH SHUT-OFF VALVE FROM MAIN COLD WATER PIPE. 24 VDC OR 120 VAC CONTROL UNIT WITH 24 HOUR TIMER WITH RELAY. LEAD FREE VACUUM BREAKER. COPPER TYPE "L" 1/2" COLD WATER TRAP PRIMER PIPE IN WALL AND ROUTED TO FLOOR DRAINS OR FLOOR SINK. PLUMBING CONTRACTOR SHALL BE FULLY RESPONSIBLE TO PROTECT PIPE WHEN COVERING WITH CONCRETE, ETC. PLASTIC MANIFOLD WITH CONNECTORS TO RECEIVE 1/2" PIPING. FLOOR DRAIN OR FLOOR SINK WITH TRAP. 1 2 3 4 5 6 7 8
