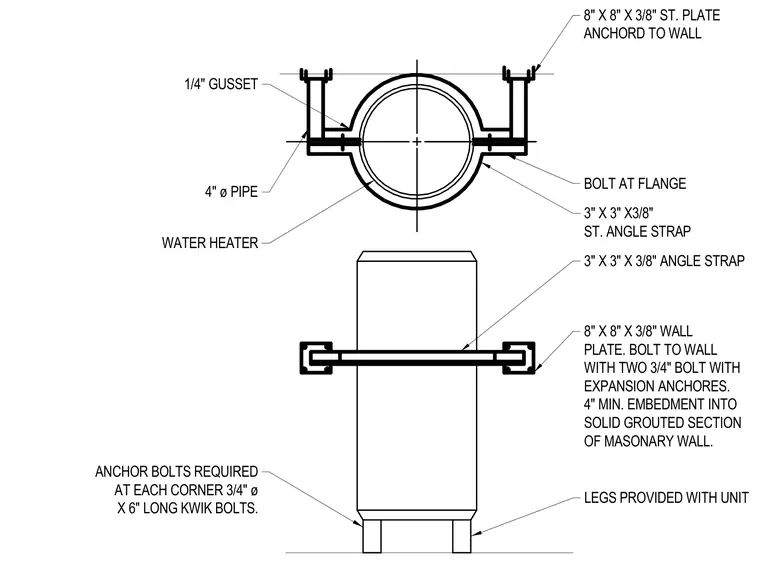

The water heater is secured with three-by-three-by-three-eighths-inch steel angle straps and eight-by-eight-by-three-eighths-inch steel wall plates bolted to the wall. Each wall plate utilizes two three-quarter-inch expansion anchors with a four-inch minimum embedment into a solid grouted section of the masonry wall. Additional three-quarter-inch diameter by six-inch long expansion anchors are provided at each corner of the unit legs. A four-inch diameter pipe and one-quarter-inch gusset reinforce the assembly connection.
LEGS PROVIDED WITH UNIT 8" X 8" X 3/8" WALL PLATE. BOLT TO WALL WITH TWO 3/4" BOLT WITH EXPANSION ANCHORES. 4" MIN. EMBEDMENT INTO SOLID GROUTED SECTION OF MASONARY WALL. 3" X 3" X 3/8" ANGLE STRAP 3" X 3" X3/8" ST. ANGLE STRAP BOLT AT FLANGE 8" X 8" X 3/8" ST. PLATE ANCHORD TO WALL ANCHOR BOLTS REQUIRED AT EACH CORNER 3/4" ø X 6" LONG KWIK BOLTS. WATER HEATER 4" ø PIPE 1/4" GUSSET
