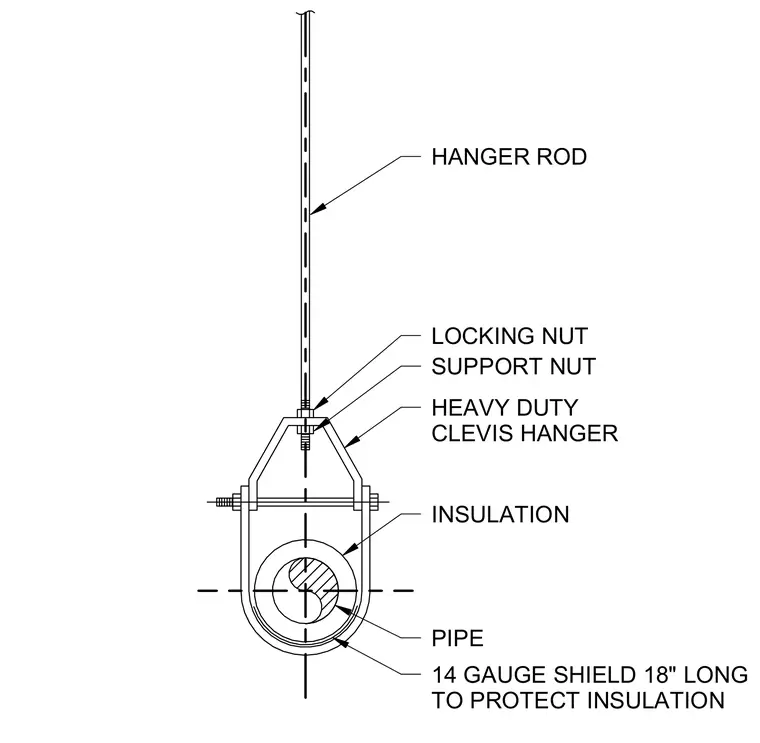

Suspended pipe assembly supported by a heavy-duty clevis hanger hung from an overhead hanger rod. The rod secures to the clevis yoke using a support nut and a locking nut. The pipe is wrapped in insulation and protected at the support point by an eighteen-inch long, fourteen-gauge shield.
HANGER ROD LOCKING NUT SUPPORT NUT INSULATION PIPE HEAVY DUTY CLEVIS HANGER 14 GAUGE SHIELD 18" LONG TO PROTECT INSULATION
