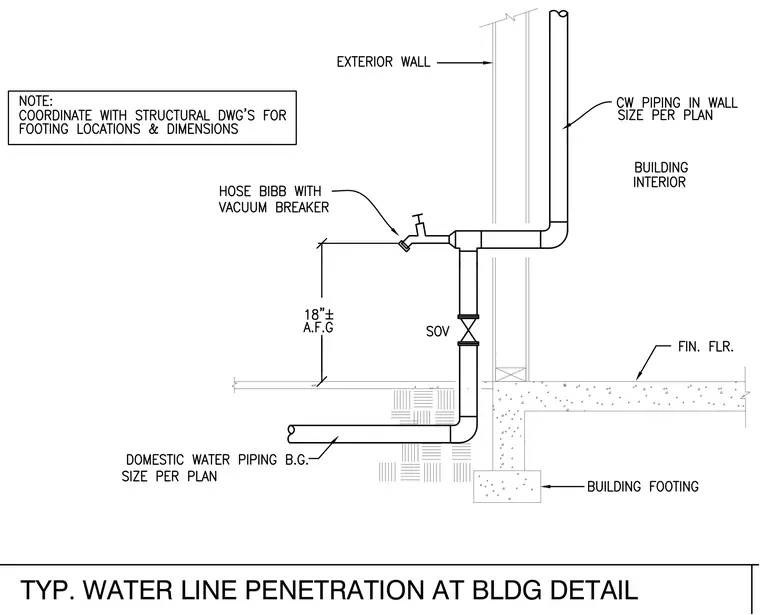

Domestic water piping runs below grade and turns upward through the floor slab near the building footing, connecting to a shut-off valve and rising inside the building interior. A cold water pipe sized per plan extends up the exterior wall to supply an exterior hose bibb equipped with a vacuum breaker, positioned at eighteen inches above finished floor. A note instructs coordination with structural drawings for footing locations and dimensions.
TYP. WATER LINE PENETRATION AT BLDG DETAIL
