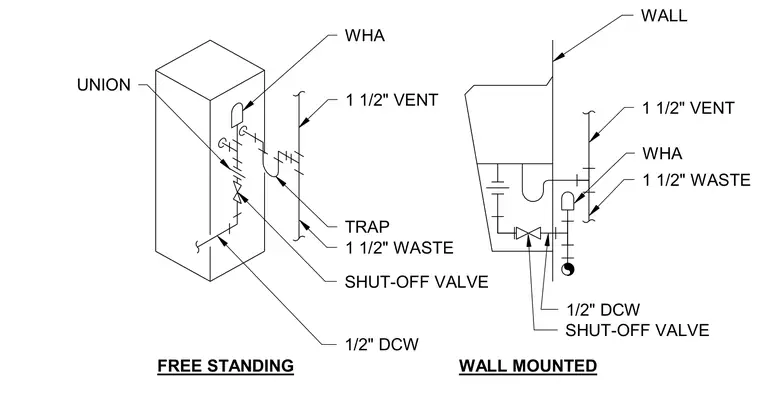

An electric water cooler plumbing connection requires a one-half inch domestic cold water supply line equipped with a shut-off valve, union, and water hammer arrestor. The waste piping consists of a one-and-one-half-inch waste line connected through a trap, paired with a one-and-one-half-inch vent line tying into the building drainage system. Both free-standing and wall-mounted configurations are detailed showing the exact arrangement of valves, fittings, and fixture connections against the wall.
FREE STANDING WALL MOUNTED WALL 1 1/2" VENT WHA 1 1/2" WASTE 1/2" DCW SHUT-OFF VALVE 1 1/2" VENT TRAP 1 1/2" WASTE SHUT-OFF VALVE 1/2" DCW WHA UNION
