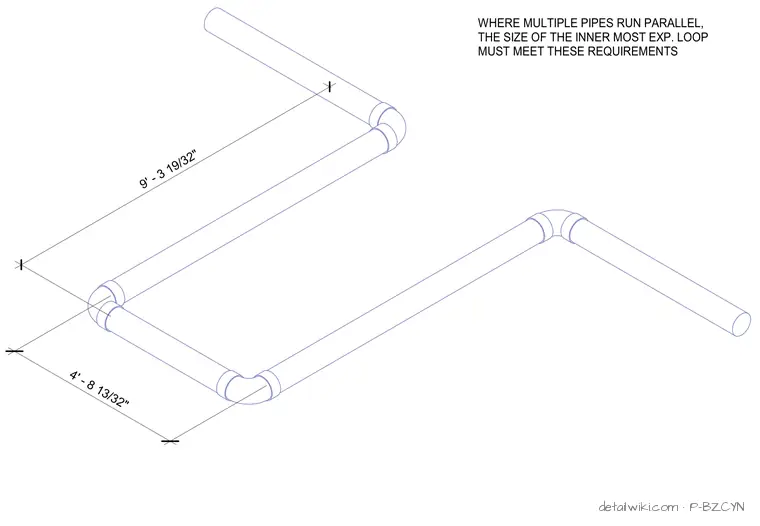

A piping expansion loop accommodates thermal movement in roof drain piping. The assembly consists of a series of elbows forming a U-shaped offset to absorb linear expansion. Dimensions of 9 feet 3 19/32 inches and 4 feet 8 13/32 inches define the loop geometry. Where multiple pipes run in parallel, the innermost expansion loop must adhere to these specified dimensional requirements.
Text on the drawing
9' - 3 19/32" 4' - 8 13/32" WHERE MULTIPLE PIPES RUN PARALLEL, THE SIZE OF THE INNER MOST EXP. LOOP MUST MEET THESE REQUIREMENTS 10 NATURAL GAS PIPING EXPANSION LOOP DETAIL 11 ROOF DRAIN PIPING EXPANSION LOOP DETAIL
