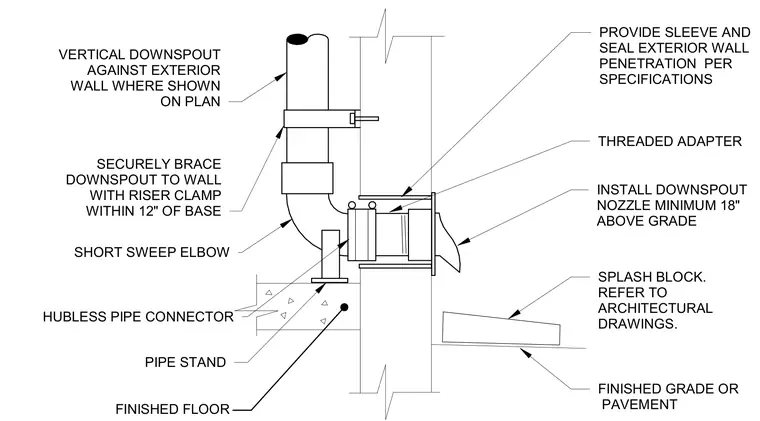

A vertical downspout runs against the exterior wall and transitions through a short sweep elbow connected via a hubless pipe connector to a threaded adapter penetrating the wall. A riser clamp securely braces the downspout to the wall within twelve inches of the base, while a pipe stand supports the elbow above the finished floor. The exterior wall penetration requires a sleeve and seal installed per specifications. A downspout nozzle discharges stormwater at least eighteen inches above finished grade or pavement onto a splash block.
THREADED ADAPTER FINISHED FLOOR PIPE STAND HUBLESS PIPE CONNECTOR SHORT SWEEP ELBOW PROVIDE SLEEVE AND SEAL EXTERIOR WALL PENETRATION PER SPECIFICATIONS INSTALL DOWNSPOUT NOZZLE MINIMUM 18" ABOVE GRADE SPLASH BLOCK. REFER TO ARCHITECTURAL DRAWINGS. FINISHED GRADE OR PAVEMENT VERTICAL DOWNSPOUT AGAINST EXTERIOR WALL WHERE SHOWN ON PLAN SECURELY BRACE DOWNSPOUT TO WALL WITH RISER CLAMP WITHIN 12" OF BASE
