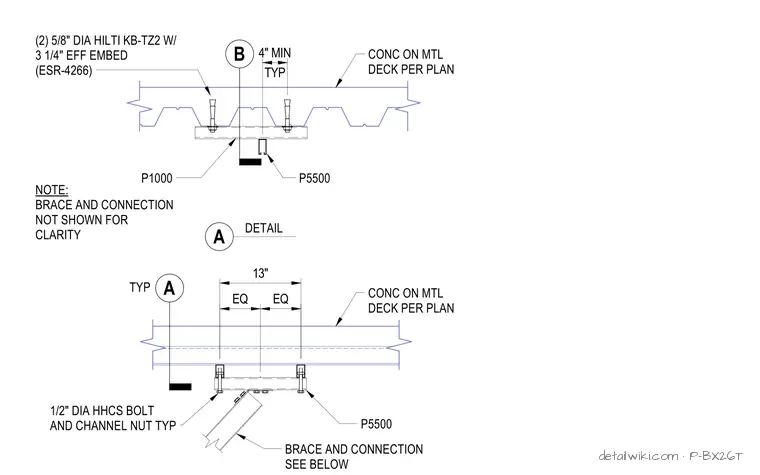

P-BX26T — Telestrut Brace To Concrete Somd

Plumbing · P-BX26T

Telestrut Brace To Concrete Somd

Units: imperial
Sheet: P1000
Discipline: Plumbing

Materials

Cold-formed Steel Concrete Metal (misc.)Steel

Elements

Anchors / Embeds Bracing Connections / Plates Decks Floors / Slabs

Connections

Base Plate / Anchorage Bolted Connection Bracing Connection Deck Attachment Embed Plate

Text on the drawing

TYP 4" MIN (2) 5/8" DIA HILTI KB-TZ2 W/ 3 1/4" EFF EMBED (ESR-4266) P1000 P5500 A DETAIL BRACE AND CONNECTION SEE BELOW P5500 EQ EQ 1/2" DIA HHCS BOLT AND CHANNEL NUT TYP A TYP NOTE: BRACE AND CONNECTION NOT SHOWN FOR CLARITY B 13" CONC ON MTL DECK PER PLAN CONC ON MTL DECK PER PLAN
