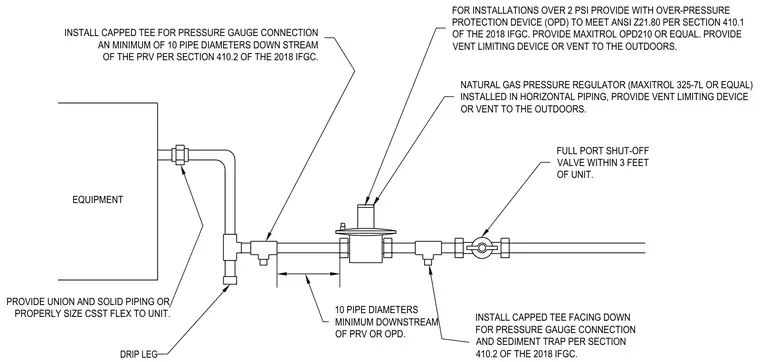

A natural gas pressure regulator (Maxitrol 325-7L or equal) is installed in horizontal piping with a vent limiting device or exterior vent. A full port shut-off valve is located within three feet of the equipment, followed by a capped tee facing down for a pressure gauge connection and sediment trap. A minimum of ten pipe diameters downstream of the pressure reducing valve or over-pressure protection device, another capped tee is installed for a pressure gauge connection. Installations over two psi include an over-pressure protection device (Maxitrol OPD210 or equal) meeting ANSI Z21.80. A union and solid piping or properly sized corrugated stainless steel tubing connects the line to the equipment.
INSTALL CAPPED TEE FACING DOWN FOR PRESSURE GAUGE CONNECTION AND SEDIMENT TRAP PER SECTION 410.2 OF THE 2018 IFGC. NATURAL GAS PRESSURE REGULATOR (MAXITROL 325-7L OR EQUAL) INSTALLED IN HORIZONTAL PIPING, PROVIDE VENT LIMITING DEVICE OR VENT TO THE OUTDOORS. INSTALL CAPPED TEE FOR PRESSURE GAUGE CONNECTION AN MINIMUM OF 10 PIPE DIAMETERS DOWN STREAM OF THE PRV PER SECTION 410.2 OF THE 2018 IFGC. FULL PORT SHUT-OFF VALVE WITHIN 3 FEET OF UNIT. PROVIDE UNION AND SOLID PIPING OR PROPERLY SIZE CSST FLEX TO UNIT. 10 PIPE DIAMETERS MINIMUM DOWNSTREAM OF PRV OR OPD. FOR INSTALLATIONS OVER 2 PSI PROVIDE WITH OVER-PRESSURE PROTECTION DEVICE (OPD) TO MEET ANSI Z21.80 PER SECTION 410.1 OF THE 2018 IFGC. PROVIDE MAXITROL OPD210 OR EQUAL. PROVIDE VENT LIMITING DEVICE OR VENT TO THE OUTDOORS. EQUIPMENT DRIP LEG
