An expansion tank weighing 140 pounds is anchored to a concrete floor using three steel angle clips secured to the tank with half-inch diameter bolts and washers. Each three-inch long angle, sized at L2x2x1/4, is anchored to the concrete floor with a half-inch diameter Hilti KB-TZ wedge anchor providing a two-inch embedment depth. The mounting arrangement utilizes three attachment locations following quality assurance notes on structural sheet S0.10. Overall dimensions indicate a tank height of 19-5/16 inches and a body diameter of 12-3/4 inches within a 16-1/2 inch footprint.

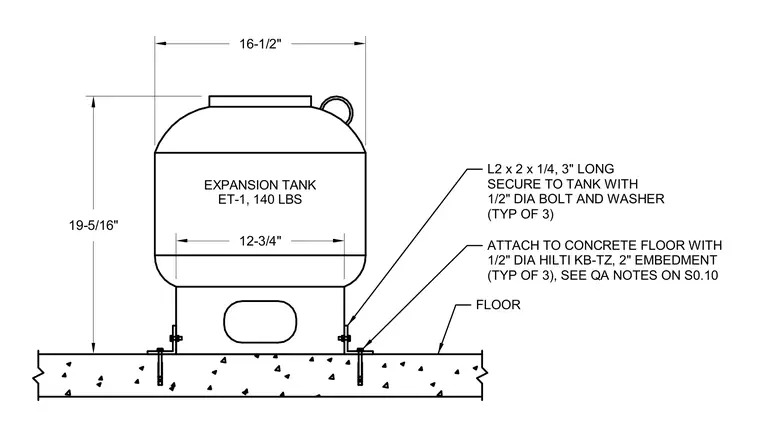

EXPANSION TANK ET-1, 140 LBS 19-5/16" 12-3/4" 16-1/2" FLOOR ATTACH TO CONCRETE FLOOR WITH 1/2" DIA HILTI KB-TZ, 2" EMBEDMENT (TYP OF 3), SEE QA NOTES ON S0.10 L2 x 2 x 1/4, 3" LONG SECURE TO TANK WITH 1/2" DIA BOLT AND WASHER (TYP OF 3)
