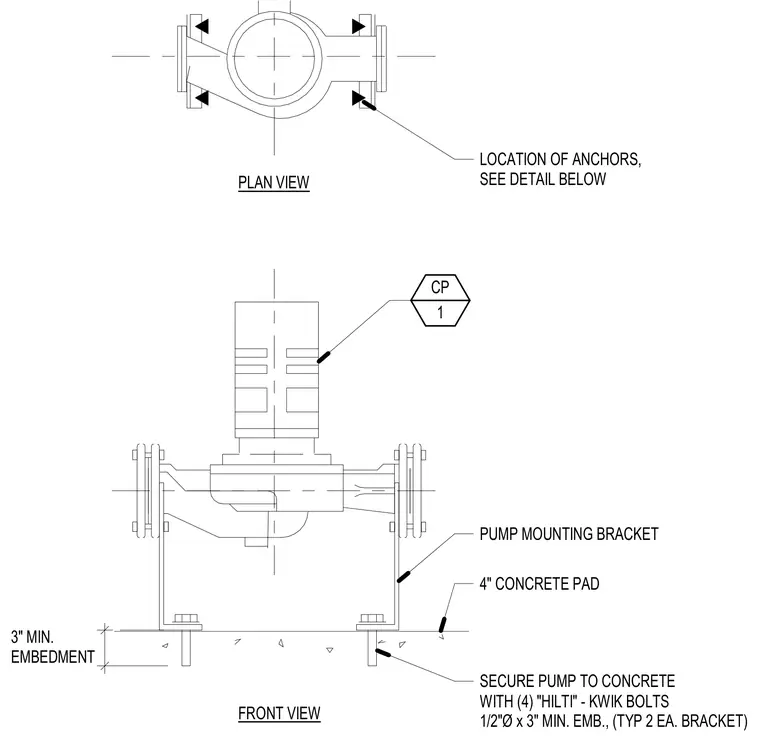

A pump mounting bracket is secured to a four-inch concrete pad using four half-inch diameter by three-inch minimum embedment Hilti Kwik expansion bolts, with two bolts provided for each bracket. The assembly features a plan view and a front elevation view illustrating the pump body, mounting brackets, and anchor placement.
PLAN VIEW FRONT VIEW CP 1 PUMP MOUNTING BRACKET 4" CONCRETE PAD SECURE PUMP TO CONCRETE WITH (4) "HILTI" - KWIK BOLTS 1/2"Ø x 3" MIN. EMB., (TYP 2 EA. BRACKET) 3" MIN. EMBEDMENT LOCATION OF ANCHORS, SEE DETAIL BELOW
