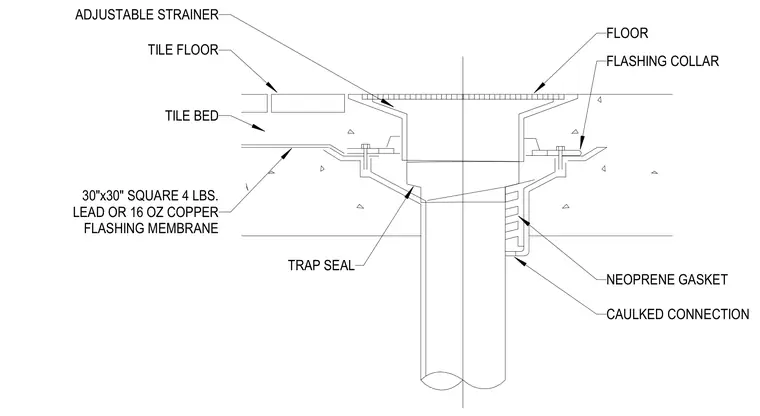

A floor drain assembly is set within a tile floor and tile bed, incorporating an adjustable strainer and trap seal. A flashing collar secures a 30-inch by 30-inch square four-pound lead or 16-ounce copper flashing membrane to ensure waterproofing at the floor penetration. The drain body connects to the waste pipe via a neoprene gasket and a caulked connection.
TRAP SEAL NEOPRENE GASKET CAULKED CONNECTION TILE BED ADJUSTABLE STRAINER TILE FLOOR FLOOR FLASHING COLLAR 30"x30" SQUARE 4 LBS. LEAD OR 16 OZ COPPER FLASHING MEMBRANE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
