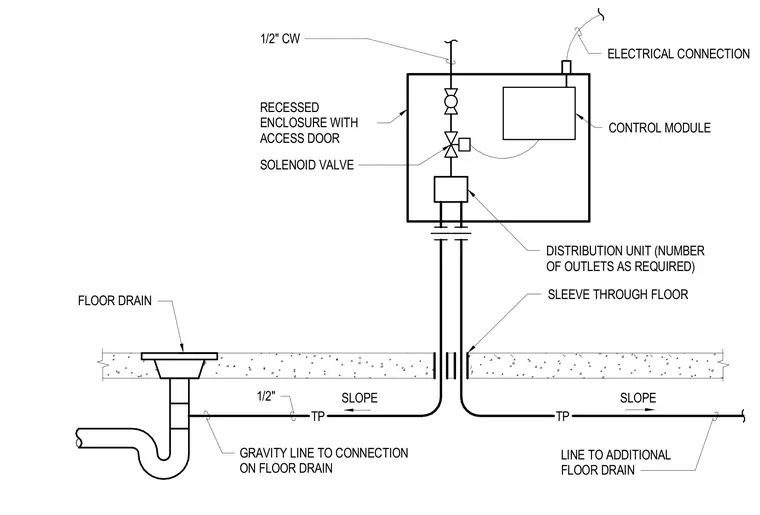

An electronic trap primer is housed within a recessed enclosure with an access door, supplied by a half-inch cold water line and an electrical connection to a control module. A solenoid valve and distribution unit regulate water flow through a floor sleeve to trap primer lines sloping toward floor drains.
GRAVITY LINE TO CONNECTION ON FLOOR DRAIN 1/2" TP SLOPE SLOPE LINE TO ADDITIONAL FLOOR DRAIN TP FLOOR DRAIN SOLENOID VALVE RECESSED ENCLOSURE WITH ACCESS DOOR 1/2" CW ELECTRICAL CONNECTION CONTROL MODULE DISTRIBUTION UNIT (NUMBER OF OUTLETS AS REQUIRED) SLEEVE THROUGH FLOOR
