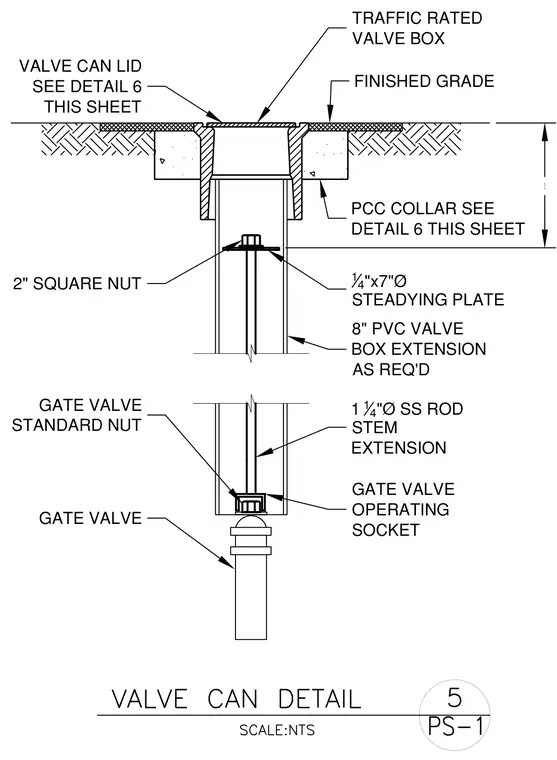

A traffic-rated valve box is set flush with the finished grade, surrounded by a Portland cement concrete collar. An eight-inch PVC valve box extension houses a one-and-one-quarter-inch diameter stainless steel rod stem extension. The stem extension secures with a two-inch square nut and a one-quarter-inch by seven-inch diameter steadying plate. A gate valve operating socket connects the stem extension to the standard nut of the underground gate valve.
24" CLR GATE VALVE STANDARD NUT GATE VALVE 2" SQUARE NUT VALVE CAN LID SEE DETAIL 6 THIS SHEET 1 1 4 "Ø SS ROD STEM EXTENSION GATE VALVE OPERATING SOCKET 8" PVC VALVE BOX EXTENSION AS REQ'D 14 "x7"Ø STEADYING PLATE PCC COLLAR SEE DETAIL 6 THIS SHEET FINISHED GRADE TRAFFIC RATED VALVE BOX
