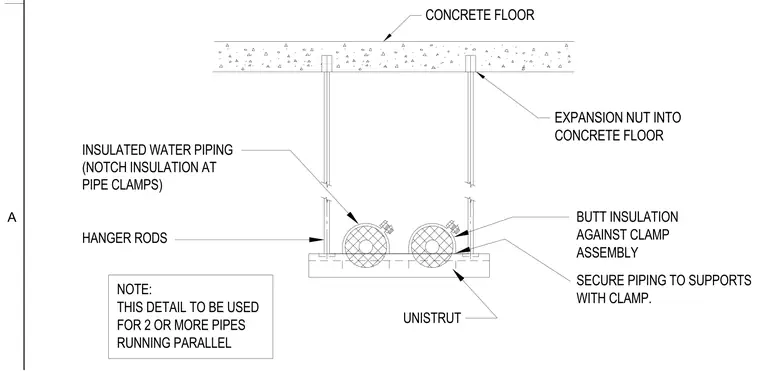

Insulated water piping is supported by a unistrut assembly suspended from a concrete floor slab by hanger rods anchored with expansion nuts. Butt insulation is placed against the clamp assembly, and piping is secured to the supports with pipe clamps while notching the insulation at the clamp locations. This detail applies to two or more parallel running pipes.
BUTT INSULATION SECURE PIPING TO SUPPORTS NOTE: HANGER RODS (NOTCH INSULATION AT PIPE CLAMPS) RUNNING PARALLEL FOR 2 OR MORE PIPES THIS DETAIL TO BE USED INSULATED WATER PIPING UNISTRUT ASSEMBLY AGAINST CLAMP WITH CLAMP. EXPANSION NUT INTO CONCRETE FLOOR CONCRETE FLOOR A
