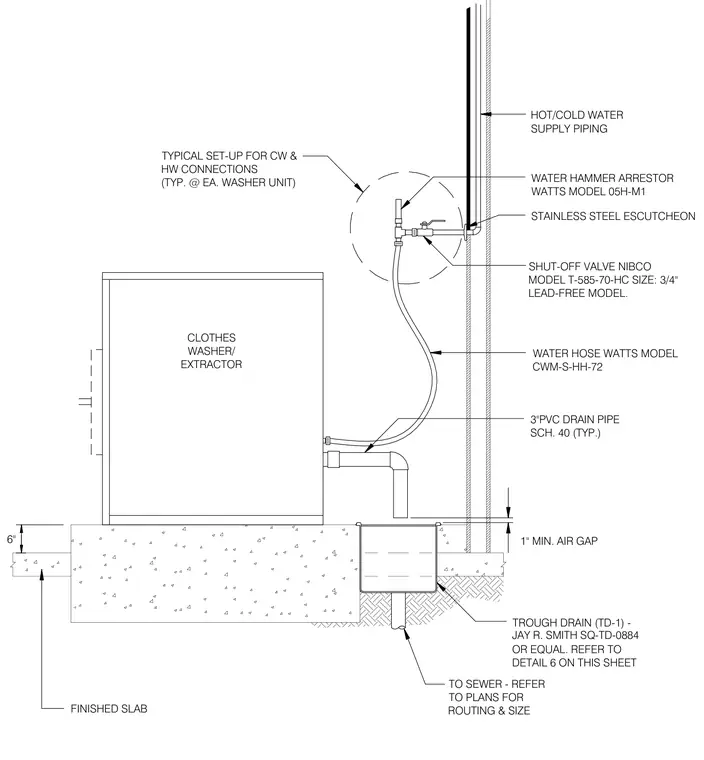

Hot and cold water supply piping connects to a clothes washer or extractor through a three-quarter-inch lead-free Nibco Model T-585-70-HC shut-off valve, a Watts Model 05H-M1 water hammer arrestor, and a Watts Model Cwm-S-Hh-72 water hose with a stainless steel escutcheon. A three-inch PVC Schedule 40 drain pipe discharges from the unit into a Jay R. Smith Sq-Td-0884 trough drain set into the finished concrete slab, maintaining a one-inch minimum air gap. The trough drain routes to the sewer system through piping sized per the plans.
FINISHED SLAB 1" MIN. AIR GAP HOT/COLD WATER SUPPLY PIPING WATER HAMMER ARRESTOR WATTS MODEL 05H-M1 SHUT-OFF VALVE NIBCO MODEL T-585-70-HC SIZE: 3/4" LEAD-FREE MODEL. WATER HOSE WATTS MODEL CWM-S-HH-72 3"PVC DRAIN PIPE SCH. 40 (TYP.) TROUGH DRAIN (TD-1) - OR EQUAL. REFER TO TYPICAL SET-UP FOR CW & HW CONNECTIONS (TYP. @ EA. WASHER UNIT) CLOTHES WASHER/ EXTRACTOR STAINLESS STEEL ESCUTCHEON TO SEWER - REFER TO PLANS FOR ROUTING & SIZE DETAIL 6 ON THIS SHEET JAY R. SMITH SQ-TD-0884 6"
