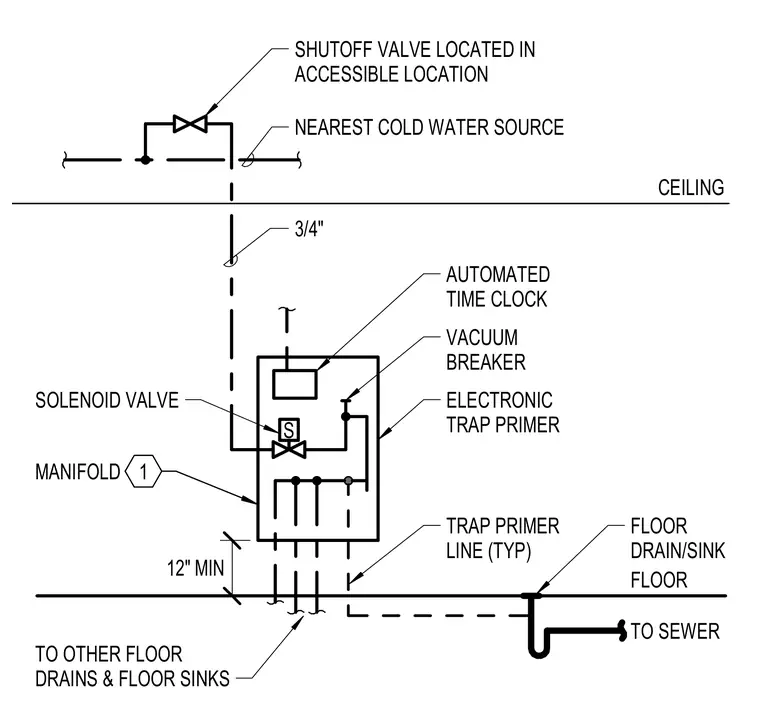

An electronic trap primer connects to the nearest cold water source with a three-quarter-inch line featuring a shutoff valve located in an accessible location above the ceiling. The assembly incorporates an automated time clock, a solenoid valve, and a vacuum breaker feeding a manifold. Trap primer lines extend downward with a twelve-inch minimum clearance above the floor slab to supply multiple floor drains and floor sinks, which then tie into the sanitary sewer.
S TO OTHER FLOOR DRAINS & FLOOR SINKS 12" MIN 3/4" NEAREST COLD WATER SOURCE SHUTOFF VALVE LOCATED IN ACCESSIBLE LOCATION AUTOMATED TIME CLOCK VACUUM BREAKER ELECTRONIC TRAP PRIMER CEILING SOLENOID VALVE 1 MANIFOLD TO SEWER FLOOR FLOOR DRAIN/SINK TRAP PRIMER LINE (TYP)
