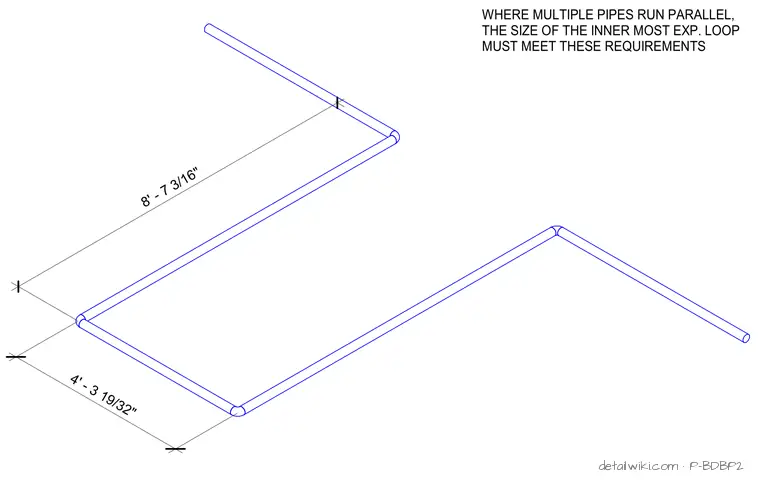

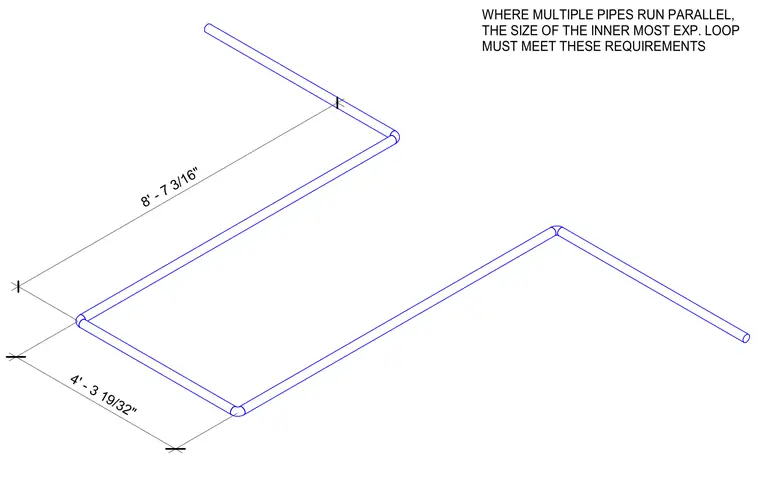

Domestic water piping expansion loop geometry featuring a primary run with a lateral offset of 4 feet 3 19/32 inches and a longitudinal run of 8 feet 7 3/16 inches. Where multiple pipes are installed in parallel, the dimensions of the innermost expansion loop must adhere to these specified requirements to accommodate thermal movement.
Text on the drawing
22 GAUGE SHEET METAL INSULATION SHIELD - 18" LONG 4' - 3 19/32" 8' - 7 3/16" WHERE MULTIPLE PIPES RUN PARALLEL, THE SIZE OF THE INNER MOST EXP. LOOP MUST MEET THESE REQUIREMENTS
