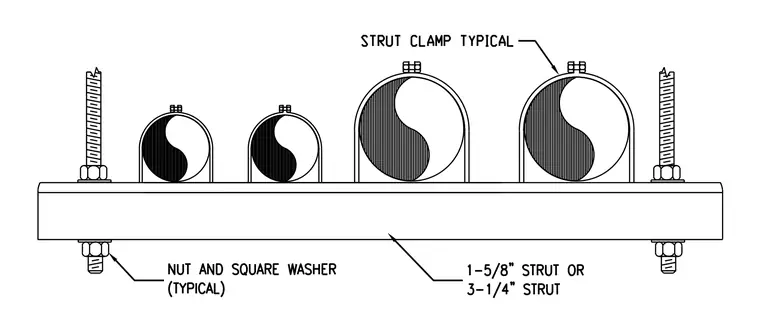

Four pipes are supported by individual strut clamps secured to either a one-and-five-eighths-inch or a three-and-a-quarter-inch metal strut channel. The horizontal strut member is suspended at each end by threaded rods anchored with nuts and square washers.
