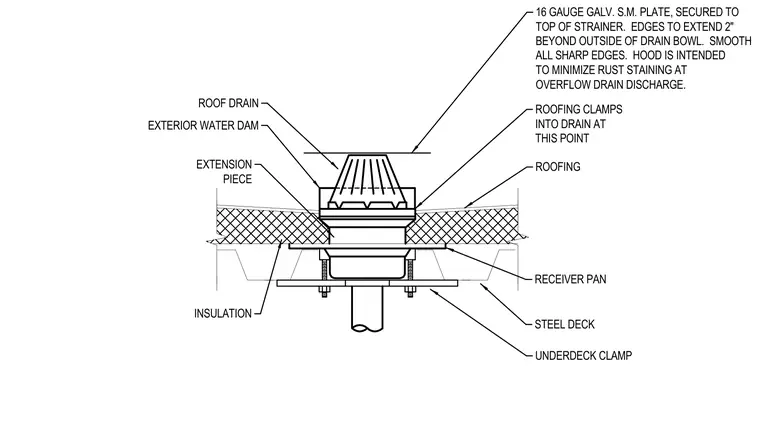

An overflow roof drain assembly penetrates through roof insulation and a steel deck, supported below by an underdeck clamp and receiver pan. Roofing membrane clamps into the drain bowl at the specified clamping ring. A sixteen gauge galvanized sheet metal hood is secured to the top of the strainer with edges extending two inches beyond the outside of the drain bowl. All sharp edges of the hood are smoothed to minimize rust staining from overflow drain discharge.
ROOFING THIS POINT INTO DRAIN AT ROOFING CLAMPS PIECE EXTENSION ROOF DRAIN RECEIVER PAN UNDERDECK CLAMP STEEL DECK INSULATION OVERFLOW DRAIN DISCHARGE. TO MINIMIZE RUST STAINING AT ALL SHARP EDGES. HOOD IS INTENDED BEYOND OUTSIDE OF DRAIN BOWL. SMOOTH TOP OF STRAINER. EDGES TO EXTEND 2" 16 GAUGE GALV. S.M. PLATE, SECURED TO EXTERIOR WATER DAM
