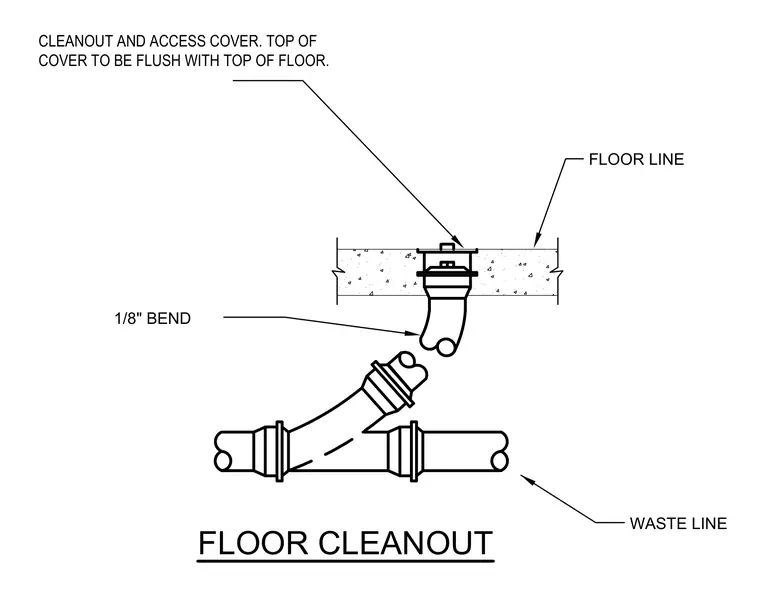

A cleanout and access cover is installed with the top of the cover flush with the finished floor line. A vertical waste pipe connects through a one-eighth bend fitting to the main waste line below the slab.
FLOOR CLEANOUT FLOOR LINE WASTE LINE 1/8" BEND CLEANOUT AND ACCESS COVER. TOP OF COVER TO BE FLUSH WITH TOP OF FLOOR.
