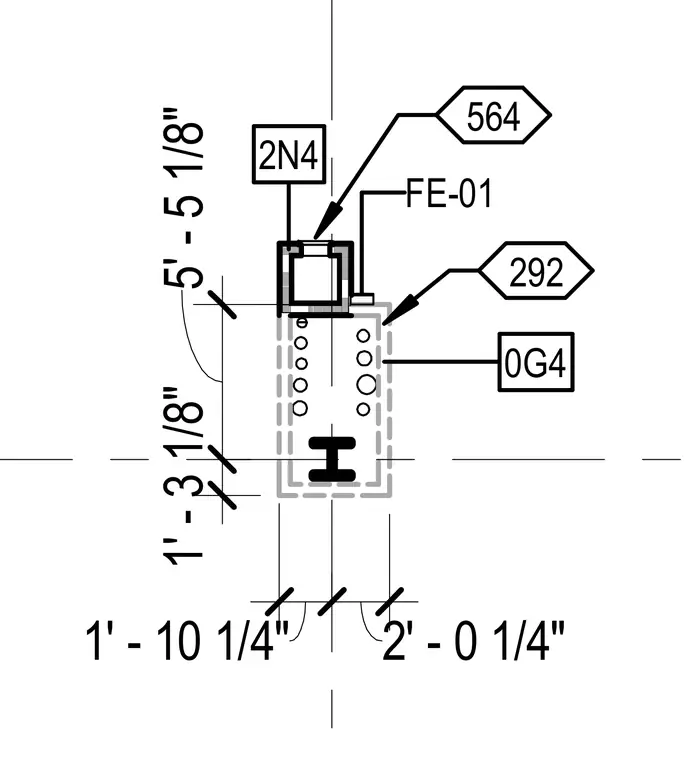

A plumbing equipment connection mounts over a structural member with associated tag designations FE-01, 2N4, 564, 292, and 0G4. Dimensions establish the horizontal and vertical offsets for the installation relative to the structural grid and member centerlines. The assembly incorporates coordinated tag references and clearance dimensions for proper alignment on site.
