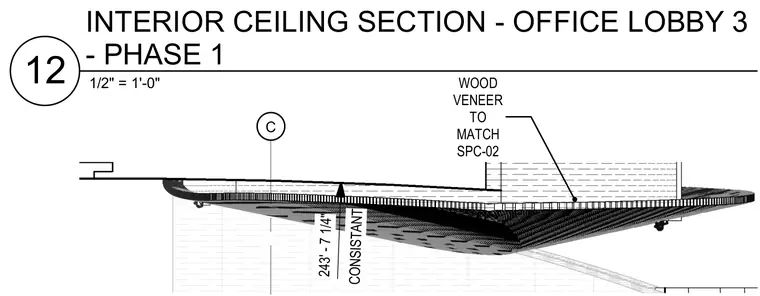

An interior ceiling section shows a suspended assembly finished with wood veneer matching specification SPC-02. The section is dimensioned with a consistent elevation of 243'-7 1/4".
C CONSISTANT 243' - 7 1/4" WOOD VENEER TO MATCH SPC-02 1/2" = 1'-0" 12 INTERIOR CEILING SECTION - OFFICE LOBBY 3 - PHASE 1
