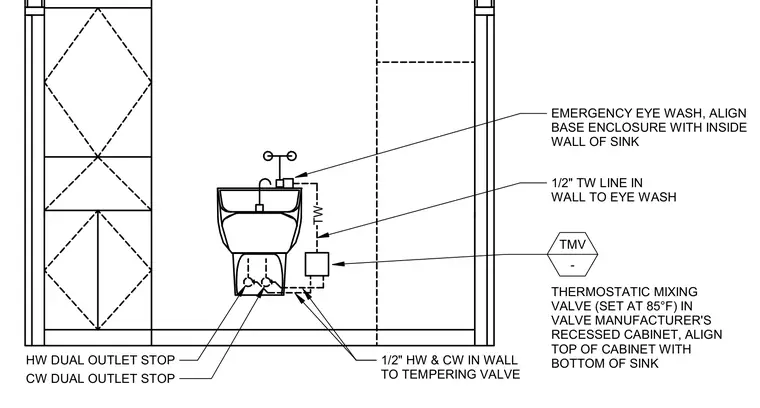

An emergency eye wash unit is mounted with its base enclosure aligned to the inside wall of the sink, receiving tempered water via a one-half inch tepid water line routed from the wall. A thermostatic mixing valve, set at eighty-five degrees Fahrenheit, is housed in a recessed cabinet with its top aligned to the bottom of the sink. Supply piping includes one-half inch hot water and cold water lines feeding the tempering valve from dual outlet stops.
TW HW DUAL OUTLET STOP CW DUAL OUTLET STOP 1/2" HW & CW IN WALL TO TEMPERING VALVE THERMOSTATIC MIXING VALVE (SET AT 85°F) IN VALVE MANUFACTURER'S RECESSED CABINET, ALIGN TOP OF CABINET WITH BOTTOM OF SINK 1/2" TW LINE IN WALL TO EYE WASH EMERGENCY EYE WASH, ALIGN BASE ENCLOSURE WITH INSIDE WALL OF SINK - TMV
