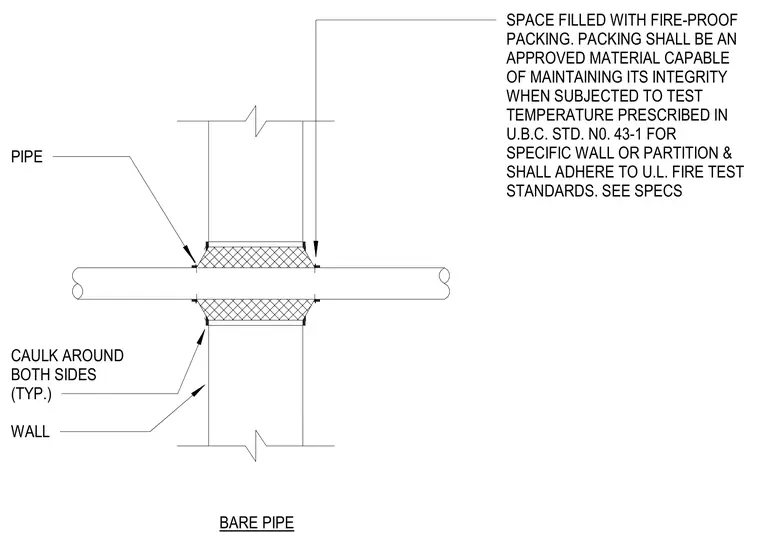

A bare pipe passes through a wall opening with the annular space filled with approved fire-proof packing material capable of maintaining its integrity under prescribed test temperatures. Fire caulk is applied around both sides of the pipe typically. The packing and sealant configuration adheres to Underwriters Laboratories fire test standards and Uniform Building Code specifications.
SPACE FILLED WITH FIRE-PROOF PACKING. PACKING SHALL BE AN APPROVED MATERIAL CAPABLE OF MAINTAINING ITS INTEGRITY WHEN SUBJECTED TO TEST TEMPERATURE PRESCRIBED IN U.B.C. STD. N0. 43-1 FOR SPECIFIC WALL OR PARTITION & SHALL ADHERE TO U.L. FIRE TEST STANDARDS. SEE SPECS PIPE CAULK AROUND BOTH SIDES (TYP.) WALL BARE PIPE
