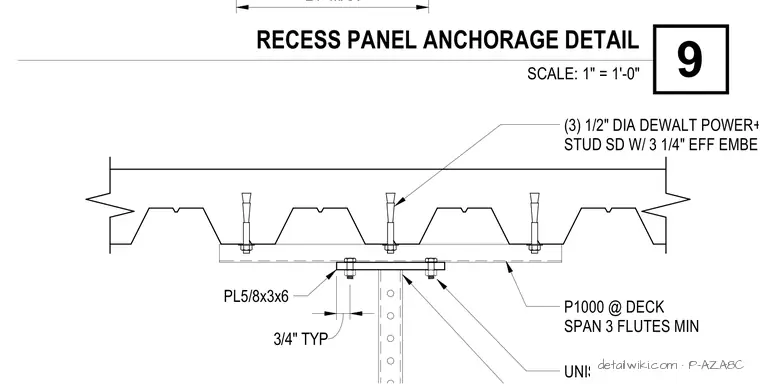

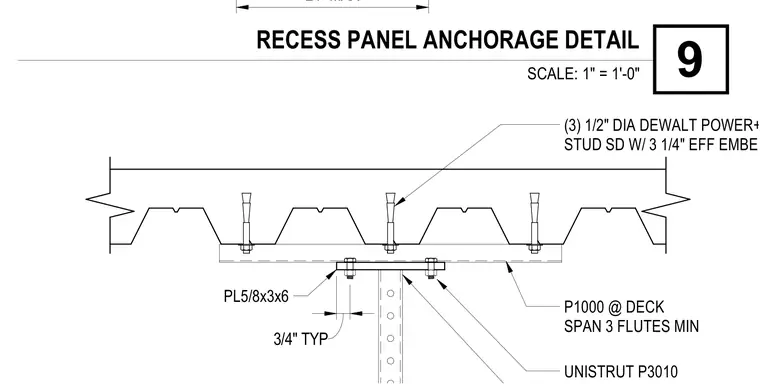

A Unistrut P3010 channel connects to a P1000 track spanning a minimum of three flutes of a metal deck. The assembly is secured using three 1/2-inch diameter Dewalt Power-Plus SD threaded studs with a 3-1/4 inch effective embedment. A 5/8-inch thick by 3-inch wide and 6-inch long steel plate is fastened with a 3/4-inch typical spacing. The detail provides secure anchorage for recess panels against overhead deck structures.
UNISTRUT P3010 P1000 @ DECK SPAN 3 FLUTES MIN (3) 1/2" DIA DEWALT POWER+ STUD SD W/ 3 1/4" EFF EMBED 3/4" TYP PL5/8x3x6 24" MAX SCALE: 1" = 1'-0" 9 RECESS PANEL ANCHORAGE DETAIL
