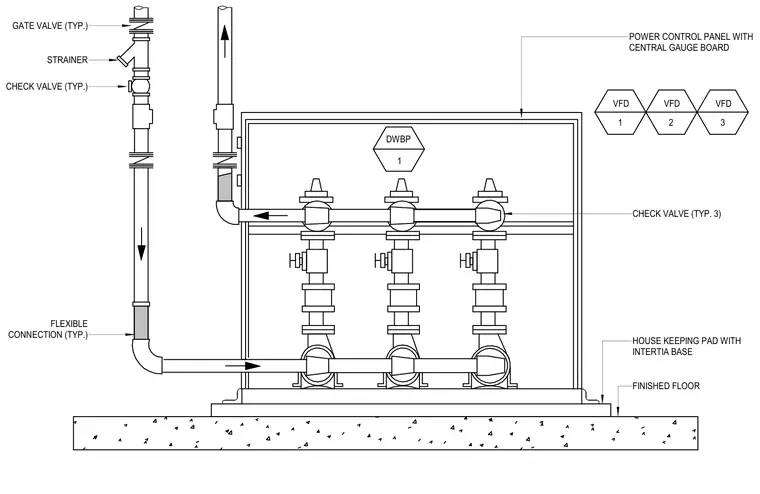

A domestic water triplex booster pump system is mounted on a concrete housekeeping pad with an inertia base resting on the finished floor. The assembly includes three variable frequency drives and a power control panel equipped with a central gauge board. Piping connections feature typical gate valves, check valves, a strainer, and flexible connections to isolate vibration.
DWBP 1 VFD 1 VFD 2 VFD 3 GATE VALVE (TYP.) STRAINER CHECK VALVE (TYP.) FLEXIBLE CONNECTION (TYP.) POWER CONTROL PANEL WITH CENTRAL GAUGE BOARD CHECK VALVE (TYP. 3) HOUSE KEEPING PAD WITH INTERTIA BASE FINISHED FLOOR
