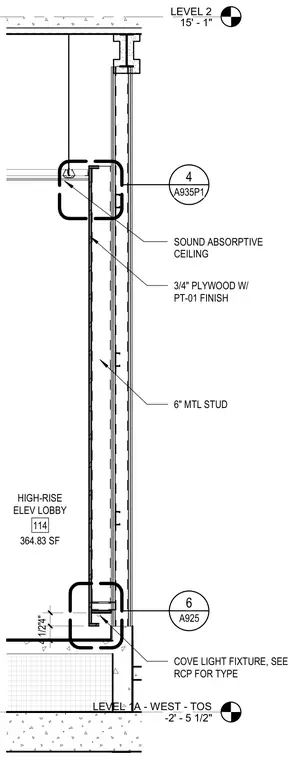

This wall detail displays a sound-absorptive ceiling intersecting a six-inch metal stud wall finished with three-quarter-inch plywood featuring a PT-01 finish. A cove light fixture is integrated at the base of the assembly, with its exact type coordinated per the reflected ceiling plan. The assembly spans vertically from Level 1A to Level 2 at fifteen feet and one inch. Detail reference bubbles connect the components to related drawings A925 and A935P1.
LEVEL 2 15' - 1" LEVEL 1A - WEST - TOS -2' - 5 1/2" 4" 4 1/2" 6 A925 4 A935P1 SOUND ABSORPTIVE CEILING COVE LIGHT FIXTURE, SEE RCP FOR TYPE 3/4" PLYWOOD W/ PT-01 FINISH 6" MTL STUD HIGH-RISE ELEV LOBBY 114 364.83 SF
