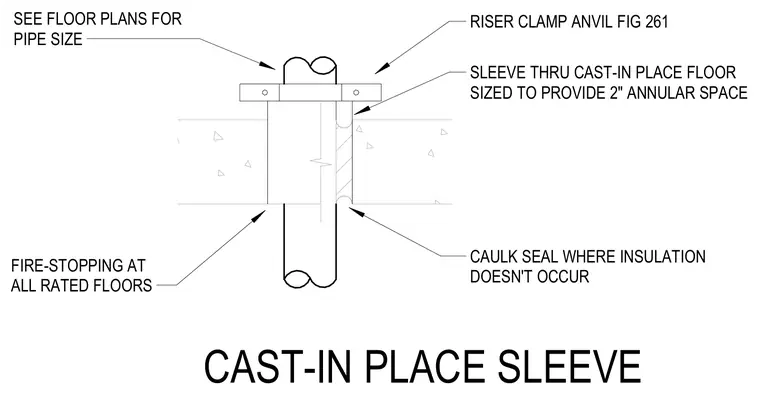

A pipe penetrates through a cast-in-place concrete floor slab utilizing a sleeve sized to provide a 2-inch annular space. An Anvil Fig 261 riser clamp supports the pipe above the floor. Fire-stopping is applied at all rated floors, and a caulk seal is provided where insulation does not occur. Pipe size is determined per floor plans.
SEE FLOOR PLANS FOR PIPE SIZE FIRE-STOPPING AT ALL RATED FLOORS CAULK SEAL WHERE INSULATION DOESN'T OCCUR SLEEVE THRU CAST-IN PLACE FLOOR SIZED TO PROVIDE 2" ANNULAR SPACE RISER CLAMP ANVIL FIG 261 CAST-IN PLACE SLEEVE
