An adjustable floor drain head is set flush with the finished concrete floor slope, featuring a safe pan flashed into the clamping collar per specifications. A caulked outlet connection joins the drain body to the piping routed tight to the structure. An ASSE 1072 trap seal protection device is installed within the drainage assembly.

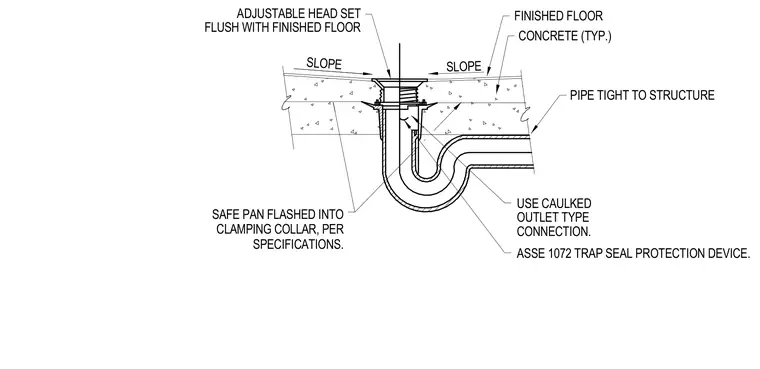

FINISHED FLOOR CONCRETE (TYP.) SLOPE USE CAULKED CONNECTION. OUTLET TYPE ADJUSTABLE HEAD SET FLUSH WITH FINISHED FLOOR SLOPE SAFE PAN FLASHED INTO CLAMPING COLLAR, PER SPECIFICATIONS. ASSE 1072 TRAP SEAL PROTECTION DEVICE. PIPE TIGHT TO STRUCTURE
