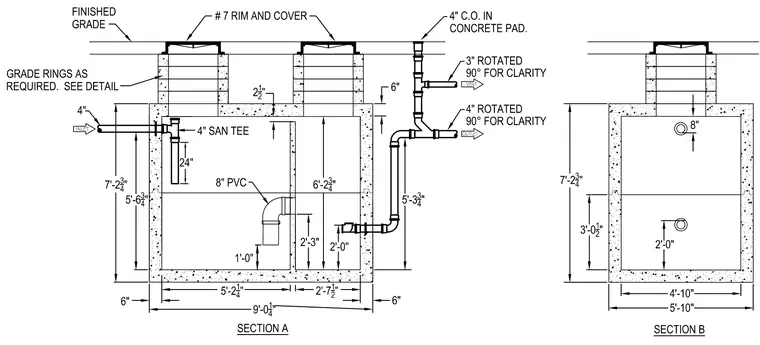

An underground concrete grease interceptor tank features a four-inch PVC inlet pipe connecting to a four-inch sanitary tee with a twenty-four-inch drop leg. An internal concrete baffle wall divides the interior chamber, passing flow through an eight-inch PVC elbow assembly. The outlet side connects to a three-inch vent pipe and four-inch cleanout extending up through a concrete pad to finished grade. Access is provided through two openings topped with grade rings and number seven rim and cover assemblies.
SECTION A SECTION B 9'-0 1 4 " 6" 5'-2 1 4 " 2'-7 1 2 " 6" OUTLET INLET FINISHED GRADE RINGS AS 1'-0" 8" PVC 2'-3" N 2'-0" 2 1 2 " 6'-2 3 4 " 7'-2 3 4 " 6" 5'-6 3 4 " 7'-2 3 4 " 3'-0 1 2 " 2'-0" 4'-10" 5'-10" 8" 4" SAN TEE 4" 24" 5'-3 3 4 " GRADE CONCRETE PAD. 4" C.O. IN REQUIRED. SEE DETAIL VENT 3" ROTATED 90° FOR CLARITY 4" ROTATED 90° FOR CLARITY # 7 RIM AND COVER
