Plumbing · P-APQRG

Water Heater Installation and Piping Connection Detail

Materials

Metal (misc.)

Elements

Floors / Slabs Drainage Anchors / Embeds

Connections

Embed Plate

About this detail

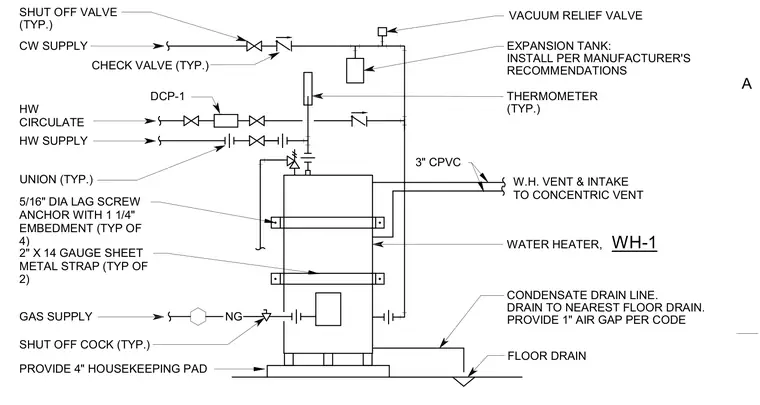

A water heater is mounted on a four-inch concrete housekeeping pad and anchored with two-inch by fourteen-gauge sheet metal straps secured by five-sixteenth-inch diameter lag screw anchors with one-and-one-quarter-inch embedment. Cold water supply, hot water supply, and hot water recirculation lines connect through unions, shut-off valves, and check valves, with a thermometer and expansion tank installed per manufacturer recommendations. A vacuum relief valve connects to the top, and natural gas is supplied through a shut-off cock. A condensate drain line routes to the nearest floor drain with a one-inch air gap per code, while concentric PVC venting handles intake and exhaust.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
